Place of Origin : China
MOQ : 1 Piece
Price : Negotiable
Payment Terms : T/T,PayPal,Negotiable
Brand Name : OEM
Packaging Details : Standard Package
Delivery Time : 1-3 Working Days
Supply Ability : 10000 Sets / Month
Model NO. : PF-AM052
Condition : New
Type : RF Power Amplifier Module
Support Network : All
Information Content : All

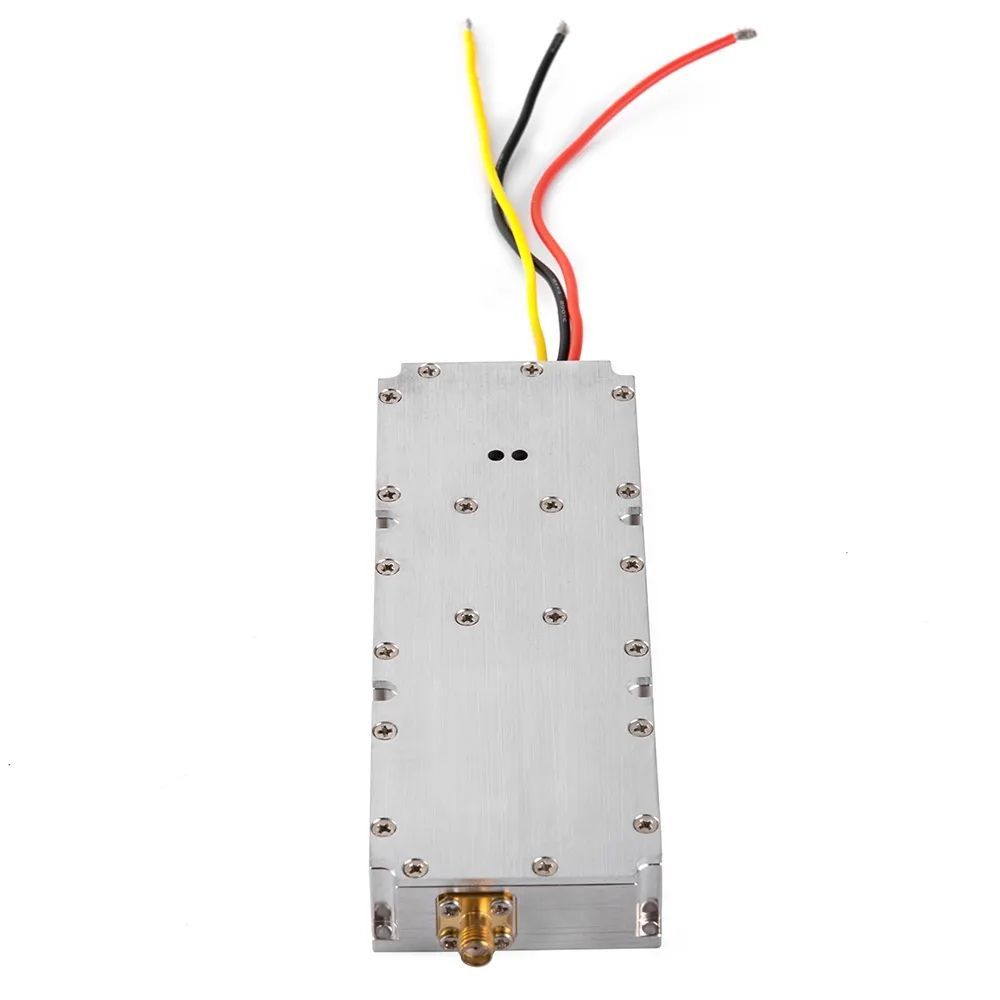

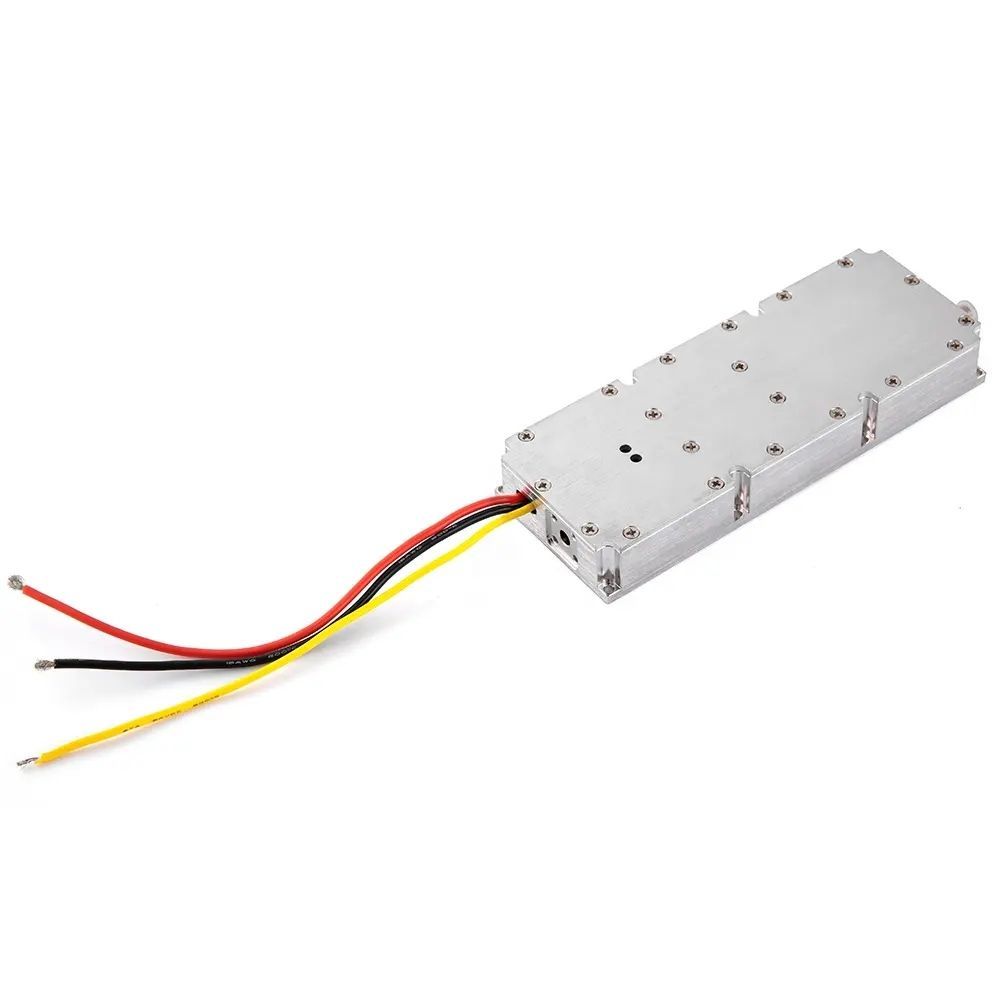

Product Name : RF Power Amplifier Module
Frequency : 5725-5800MHz
out Power : 50W
Gain : 50±1dB
Voltage : 24-28V
Product Weight : 1.5 Kg
Intra-Band Fluctuations : ≤1.5dB
Enter The Output Station Wave : ≤2.0
Output Power : 50±1dBm
RF out : SMA
Transport Package : Carton
Specification : 256*65*24mm
Trademark : No
Origin : China
Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.
Brand Name | PDFY |
Product name | RF Power Amplifier Module |
Frequency | 5725-5800MHz |
Out power | 50w |
Gain | 50±1dB |
Voltage | 24-28V |
Product Size | 256*65*24 mm |
Product Weight | 1.5kg |
Output power | 50±1dBm |
Operating ambient temperature | -40~+55ºC |
Relative humidity | 5%~95%, with no condensation |
Storage temperature | -40~+85ºC |
RF OUT | SMA type head |
Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.
With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.
Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.
![]() |
5.8g 20W RF Power Amplifier 5725-5800MHz Drone Counter Module for Anti Drone System Autel Anti Fpv Images |
