Place of Origin : China
Brand Name : OEM
MOQ : 1 Piece
Price : Negotiable
Payment Terms : T/T,PayPal,Negotiable
Packaging Details : Standard Package
Delivery Time : 1-3 Working Days
Supply Ability : 10000 Sets / Month
Type : rf power amplifier
Application : indoor & outdoor, public places, anti drone
feature : Durable, anti drone
whats app/we chat : 86-13043476740/customized

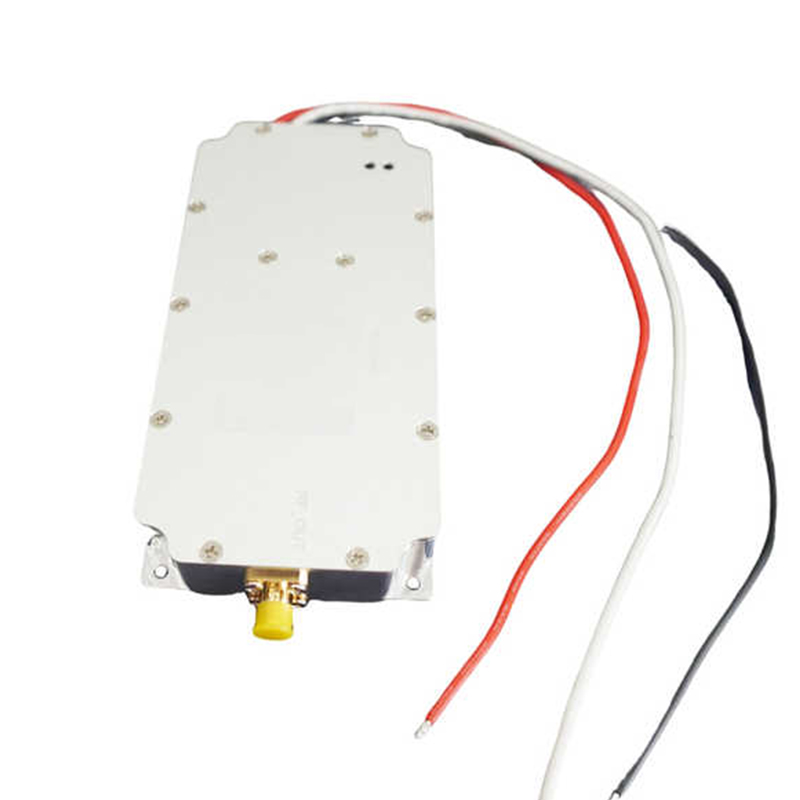

Product Name : rf power amplifier
Usage : anti drone system
Frequency Range : Customized Frequency
Power : 10w 20w 30w 50w 100w 200w
Operating Voltage : 28-32V
Maximum Power Output : 47±0.5dBm
Gain : 42±1dB
In-band fluctuation : ≤2dB
RF Output Connector : S M A

Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.


Anti-UAV Jamming Module Introduction and Working Principle:
Anti-UAV jamming module is a special device that uses radio sig nal jamming technology to interfere with the communication link, navigation positioning or control system of the drone. Its working principle is mainly based on the coverage and interference characteristics of radio sig nals. By transmitting the same jamming signal as the working frequency band of the drone, the drone cannot receive or process instructions normally, thereby preventing it from flying or forcing it to land.
Specifically, the technologies that may be used in this module include frequency hopping communication, spread spectrum communication, anti-interference antenna, encrypted communication, and intelligent identification and interference suppression. The combined use of these technologies effectively improves the survivability and mission completion rate of drones in complex electromagnetic environments. For example, by interfering with the 2.4G and 5.8G frequency bands of the drone, it can lose the image transmission signal and return; if the 1.5G frequency band is further interfered, the drone can lose the GPS sig nal and make an emergency landing.
| 50W Interference Power Amplifier Technical Data Sheet | |||||||
| Radio Frequency Index | |||||||
| Test item | Technical parameters | Unit | Remark | ||||
| Frequency Range | 420-5850 | MHz | Customized Frequency | ||||
| Operating Voltage | 28 | V | 28-32V | ||||
| Maximum Power Output | 47±0.5 | dBm | 50W@≤3.5A | ||||
| Gain | 42±1 | dB | peak-to-peak value | ||||
| In-band fluctuation | ≤2 | dB | peak-to-peak value | ||||
| Spurious Emission | Operating In-band | ≤15dBm/1MHz | dBm | Center Frequency add CW Signal to Maximum Power Output Test | |||
| Operating Out-of-ba nd | 9KHz~1GHz | No noise wave above normal base | dBm | ||||
| 1G~12.75GHz | dBm | ||||||
| Output VSWR | ≤1.30 | No power up:Standard Grid Output -10dBm | |||||
| ≤1.30 | Power up:Dual Directional Coupler Test | ||||||
| high-low temperature test | Operating Temperature | Ambient | -10~+55 | ℃ | Cold Start | ||
| Gain Stability | ±1.5 @-40℃~+55℃ | dB | |||||
| Power Stability | ±1 @-40℃~+55℃ | dB | |||||
| Power Supply Requirement | ≥4A@+28Vdc; | Continuous Wave Output 50W | |||||
| Power Supply Port | Power Cable:Red positive Black negative | Red positive Black negative | |||||
| RF Output Connector | SMA | SMA External Screw Base | |||||






Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.

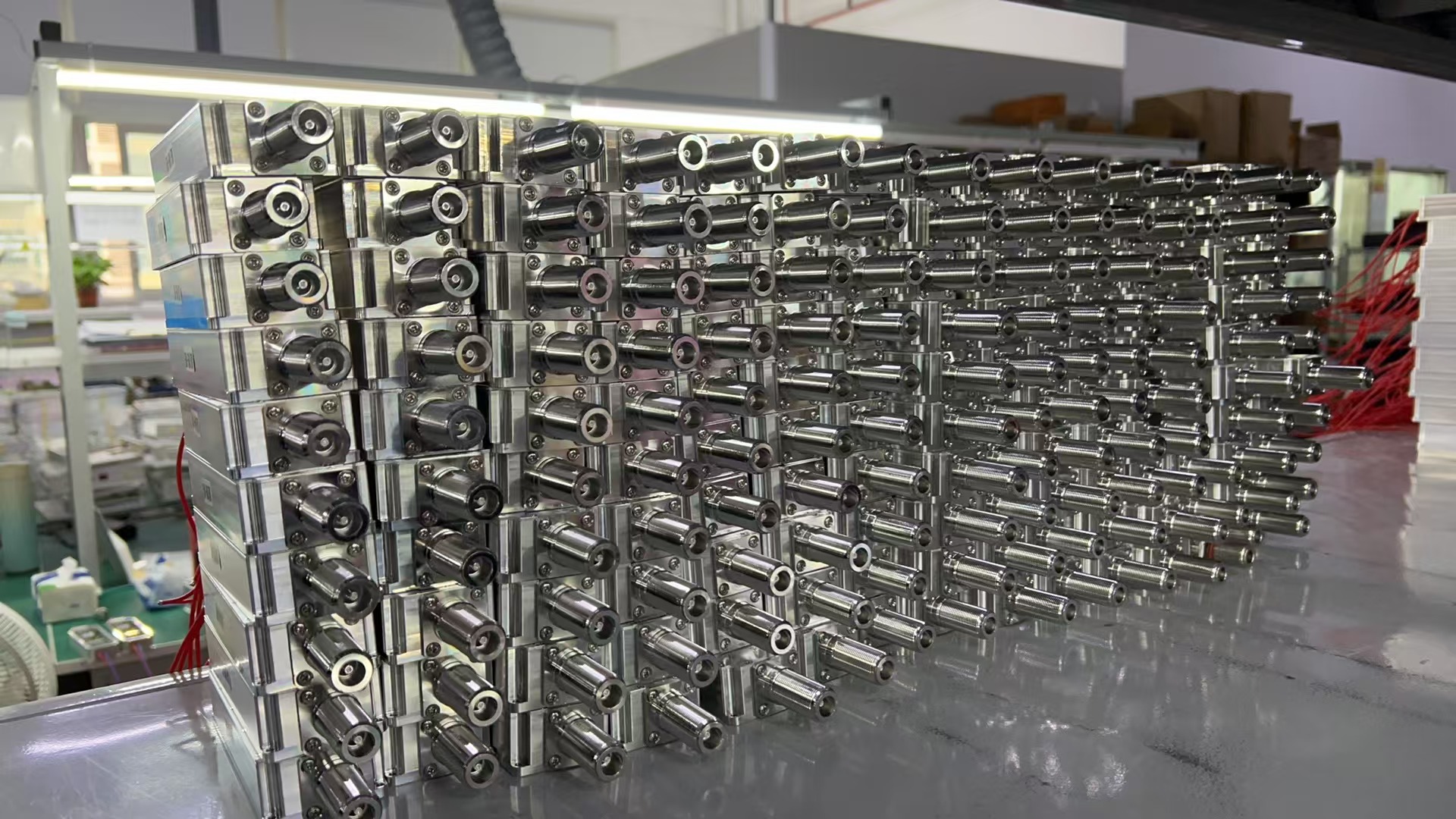

With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.




Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.

|   |
